Iscar

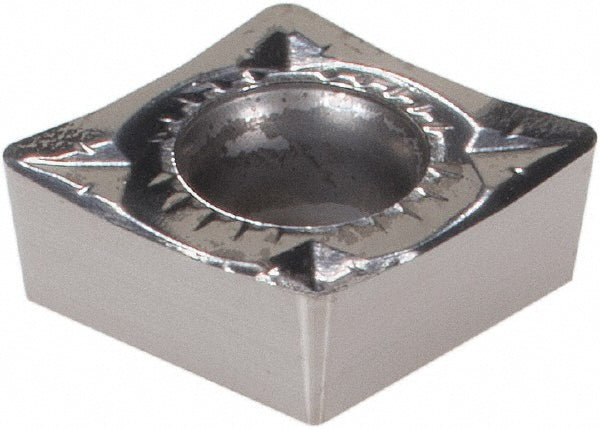

CCGT32.52 Solid Carbide Insert, Grade IC20 - Iscar 5506859
MFR# 5506859ISO/ANSI# CCGT32.52Series Isoturn
$19.81List $25.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5506859 is a CCGT32.52 solid carbide indexable insert, grade IC20. Suited for k, m, n.
Specifications
Chip breakerAF
Clearance codeC
Coating processUncoated
Corner radius in1/32
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT32.52
Length range0.3000 - 0.4000
Manufacturer gradeIC20
Maximum depth of cut0.1180
Primary workpiece materialK; M; N
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeG
