Iscar

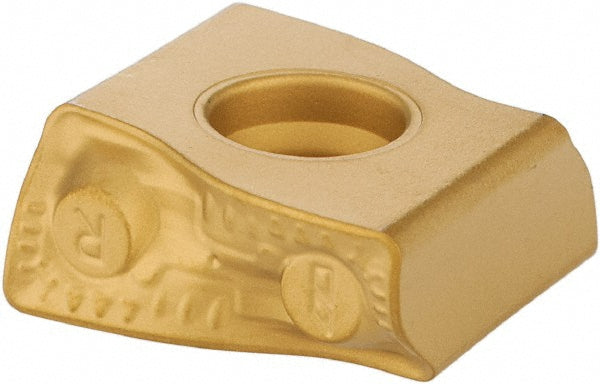

ISO 13399 Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5506934
MFR# 5506934ISO/ANSI# ISO 13399Cat# LNMX150608RSeries Heliturn
$20.95List $26.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5506934 is a ISO 13399 solid carbide indexable insert, grade IC9250, TiCN coated. Suited for p.
Specifications
Chip breakerHT
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle90.0
Insert handRight Hand
Insert holding methodScrew
Insert length0.5906
Insert materialSolid Carbide
Insert shapeRectangle
Insert size code150608
Insert styleLNMX
Insert thickness0.5276
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturers catalog numberLNMX150608R
Manufacturer gradeIC9250
Material gradeC5; C6; C7
Maximum depth of cut0.2360
Primary workpiece materialP
RakePositive
Relief angle0
Secondary workpiece materialM
StandardsISO 13399
Tolerance codeM
