Iscar

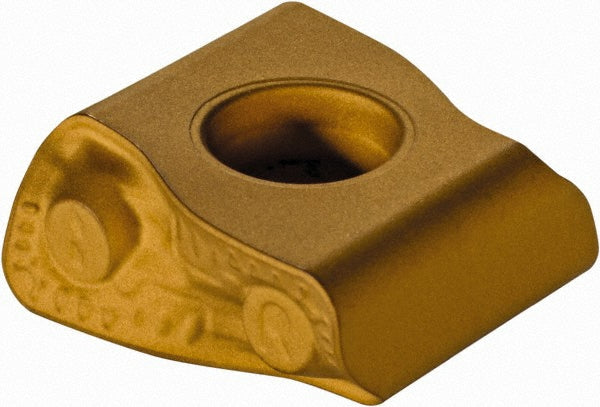

LNMX 150616R-HT Carbide Insert, Grade IC9250, TiCN - Iscar 5506938
MFR# 5506938ISO/ANSI# LNMX 150616R-HTCat# LNMX150616RHTSeries Heliturn
$20.95List $26.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC9250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5506938 is a LNMX 150616R-HT carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerHT
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Included angle90
Insert handRight Hand
Insert holding methodScrew
Insert length0.5910
Insert materialCarbide
Insert shapeRectangle
Insert size code150616
Insert styleLNMX
Insert thickness0.5280
Iso codeLNMX 150616R-HT
Length range0.5000 - 0.6000
Manufacturers catalog numberLNMX150616RHT
Manufacturer gradeIC9250
Maximum depth of cut0.3150
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
Single or multi tippedMulti Tipped
StandardsISO 13399
Tolerance codeM
Width0.2520
