Iscar
ISO 13399 Solid Carbide Insert, Grade IC9350, TiCN - Iscar 5506961
MFR# 5506961ISO/ANSI# ISO 13399Series Heliturn
$20.59List $26.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeIC9350
MaterialSolid Carbide
CoatingTiCN
Description

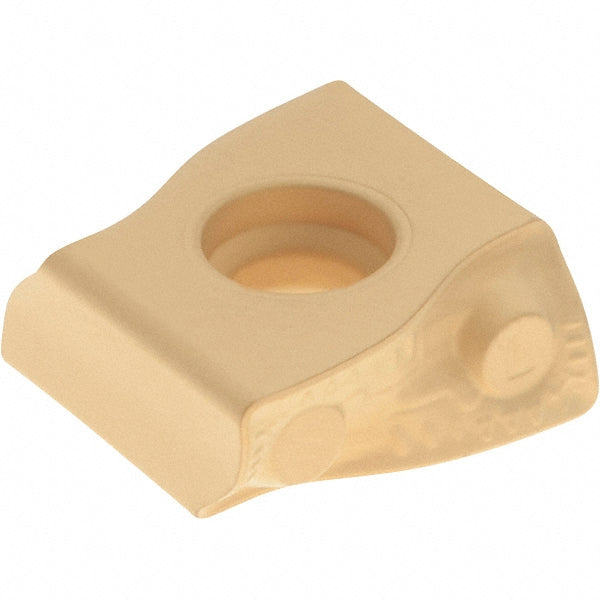

The Iscar 5506961 is a ISO 13399 solid carbide indexable insert, grade IC9350, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerHT
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting directionLeft Hand
Included angle90.0
Insert handLeft Hand
Insert holding methodScrew
Insert length0.5906
Insert materialSolid Carbide
Insert shapeRectangle
Insert size code150608
Insert styleLNMX
Insert thickness0.5276
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC9350
Maximum depth of cut (mm)6.00
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
