Iscar

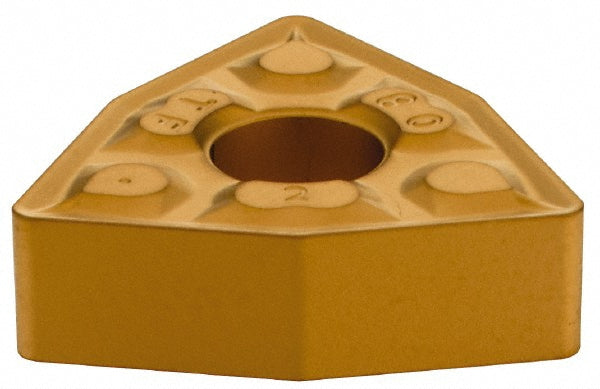

ISO 13399 Carbide Insert, Grade IC9250, TiCN - Iscar 5506972
MFR# 5506972ISO/ANSI# ISO 13399Series Isoturn
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeIC9250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5506972 is a ISO 13399 carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC9250
Material gradeC5; C6; C7
Maximum depth of cut0.1570
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
