Iscar

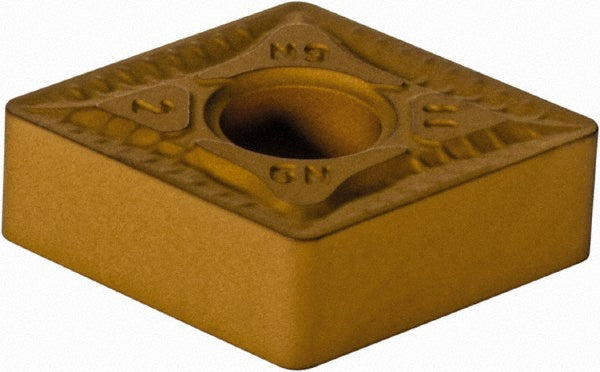

CNMG 432-GN Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5506974
MFR# 5506974ISO/ANSI# CNMG 432-GNCat# CNMG 432-GNSeries Isoturn
$16.37List $21.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5506974 is a CNMG 432-GN solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 432-GN
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG 432-GN
Manufacturer gradeIC9250
Maximum depth of cut0.1770
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
