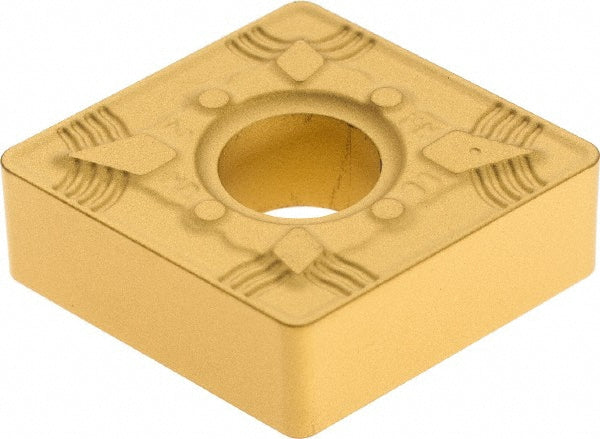

ISO 13399 Carbide Insert, Grade IC9350, TiCN - Iscar 5506977

Iscar

ISO 13399 Carbide Insert, Grade IC9350, TiCN - Iscar 5506977

MFR# 5506977ISO/ANSI# CNMG120408Series Isoturn

$16.37List $21.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC9350
MaterialCarbide
CoatingTiCN

Description

The Iscar 5506977 is a ISO 13399 carbide indexable insert, grade IC9350, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerNR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturer gradeIC9350
Maximum depth of cut0.1770
Primary workpiece materialStainless Steel; Steel
Relief angle0
Side clearanceNegative
StandardsISO 13399
Stocking categoryD
Tolerance codeM
