Iscar

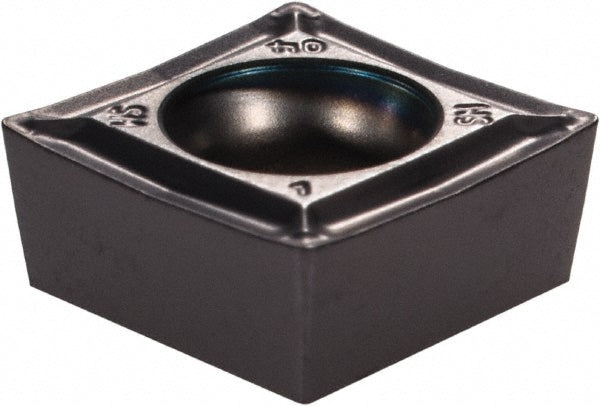

SCMT32.51 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5506986
MFR# 5506986ISO/ANSI# SCMT32.51Series Isoturn
$15.91List $20.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506986 is a SCMT32.51 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle90.0
Inscribed circle in3/8
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size code31
Insert styleSCMT
Insert thickness in5/32
Iso codeSCMT32.51
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1180
Primary workpiece materialH; M; S
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Width in3/8
