Iscar

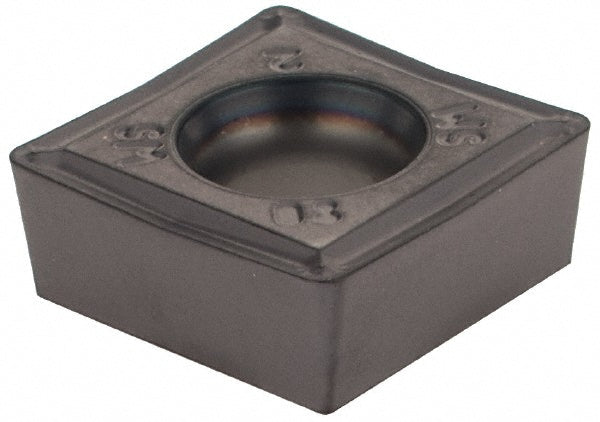

ISO 13399 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5506988
MFR# 5506988ISO/ANSI# ISO 13399Series Isoturn
$20.74List $26.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5506988 is a ISO 13399 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2165
Included angle90.0
Inscribed circle in1/2
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size code432
Insert styleSCMT
Insert thickness in3/16
Iso codeISO 13399
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1575
Primary workpiece materialH; M; S
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Width in1/2
