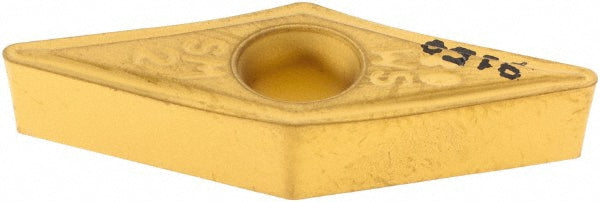

ISO 13399 Solid Carbide Insert, Grade IC9150, TiCN/Al2O3/TiN - Iscar 5507004
MFR# 5507004ISO/ANSI# ISO 13399Series Isoturn
$25.27List $32.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC9150
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Iscar 5507004 is a ISO 13399 solid carbide indexable insert, grade IC9150, TiCN/Al2O3/TiN coated. Suited for cast iron, steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle35.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6535
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleVCMT
Insert thickness in3/16
Iso codeISO 13399
Length range0.6500 - 0.7000
Manufacturer gradeIC9150
Material gradeC3; C4; C6; C7; C8
Maximum depth of cut0.0980
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
