Iscar

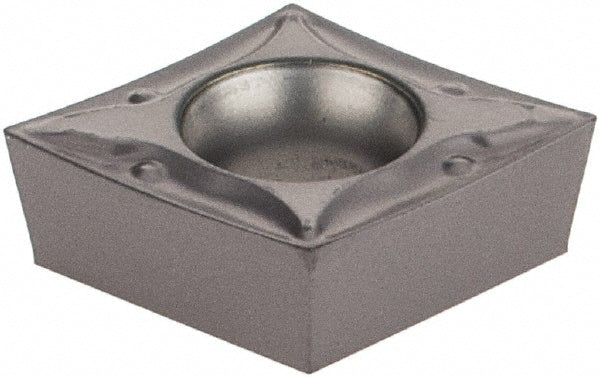

CCMT32.50.5 Solid Carbide Insert, Grade IC907, TiAlN - Iscar 5507015
MFR# 5507015ISO/ANSI# CCMT32.50.5Series Isoturn
$15.95List $20.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5507015 is a CCMT32.50.5 solid carbide indexable insert, grade IC907, TiAlN coated. Suited for h, m, s.
Specifications
Chip breakerPF
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0080
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT32.50.5
Length range0.3000 - 0.4000
Manufacturer gradeIC907
Material gradeC7; C8
Maximum depth of cut0.1180
Primary workpiece materialH; M; S
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
