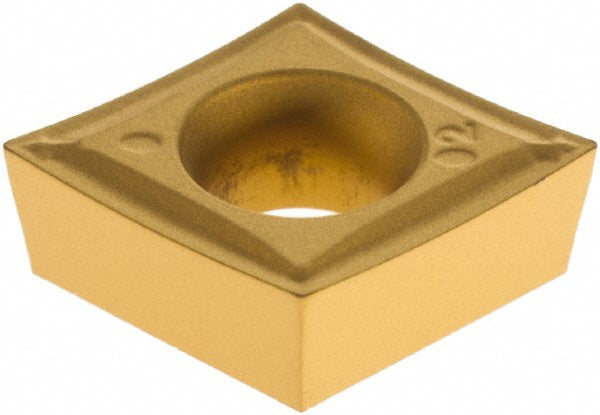

ISO 13399 Carbide Insert, Grade IC9250, TiCN - Iscar 5507017

Iscar

ISO 13399 Carbide Insert, Grade IC9250, TiCN - Iscar 5507017

MFR# 5507017ISO/ANSI# CCMT09T302Series Isoturn

$13.41List $17.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC9250
MaterialCarbide
CoatingTiCN

Description

The Iscar 5507017 is a ISO 13399 carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeCCMT3-0
Ansi size code3-0
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius0.0080
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code30
Insert styleCCMT
Insert thickness in5/32
Iso codeISO 13399
Iso insert codeCCMT09T302
Iso size code09T302
Length range0.3000 - 0.4000
Manufacturer gradeIC9250
Maximum depth of cut0.0984
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Stocking categoryD
Tolerance codeM
