Iscar

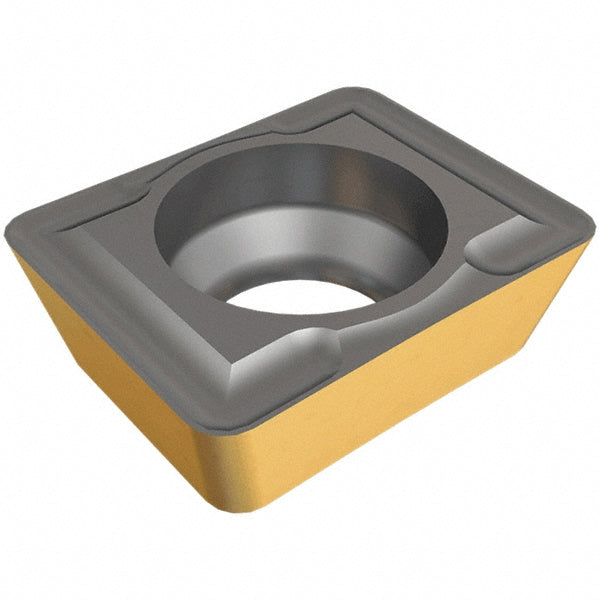

ISO 13399 Carbide Insert, Grade IC1008, TiAlN - Iscar 5507144
MFR# 5507144ISO/ANSI# ISO 13399Series PRE-THREAD
$12.10List $15.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialCarbide
CoatingTiAlN
Description
The Iscar 5507144 is a ISO 13399 carbide indexable insert, grade IC1008, TiAlN coated. Suited for universal.
Specifications
ChipbreakerDT
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Included angle degree85
Insert materialCarbide
Insert size040204
Insert size code04
Insert styleAOMT
Iso codeISO 13399
Length0.197
Manufacturer gradeIC1008
Primary workpiece materialUniversal
Relief angle31
ShapeParallelogram
StandardsISO 13399
Thickness0.063
Width0.1575
