Iscar

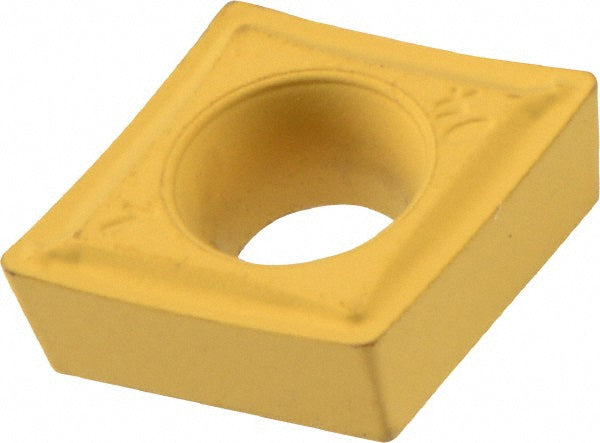

ISO 13399 Solid Carbide Insert, Grade IC9150, TiCN - Iscar 5507221
MFR# 5507221ISO/ANSI# ISO 13399Series Isoturn
$13.41List $17.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC9150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507221 is a ISO 13399 solid carbide indexable insert, grade IC9150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code3-1
Insert styleCCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC9150
Maximum depth of cut0.0984
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
