Iscar

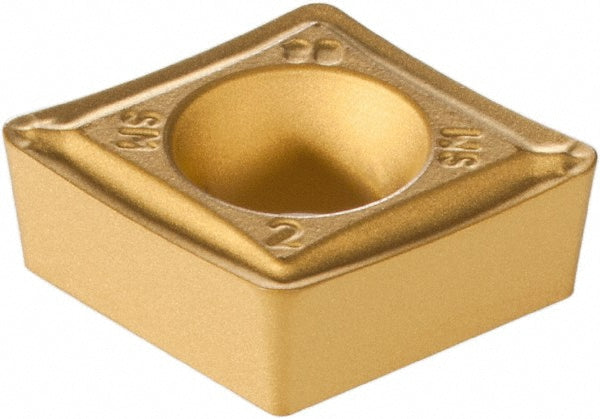

ISO 13399 Carbide Insert, Grade IC9150, TiCN - Iscar 5507222
MFR# 5507222ISO/ANSI# ISO 13399Series Isoturn
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC9150
MaterialCarbide
CoatingTiCN
Description
The Iscar 5507222 is a ISO 13399 carbide indexable insert, grade IC9150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond
Insert size code3-2
Insert styleCCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC9150
Material gradeC3; C4; C6; C7; C8
Maximum depth of cut0.1181
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
