Iscar

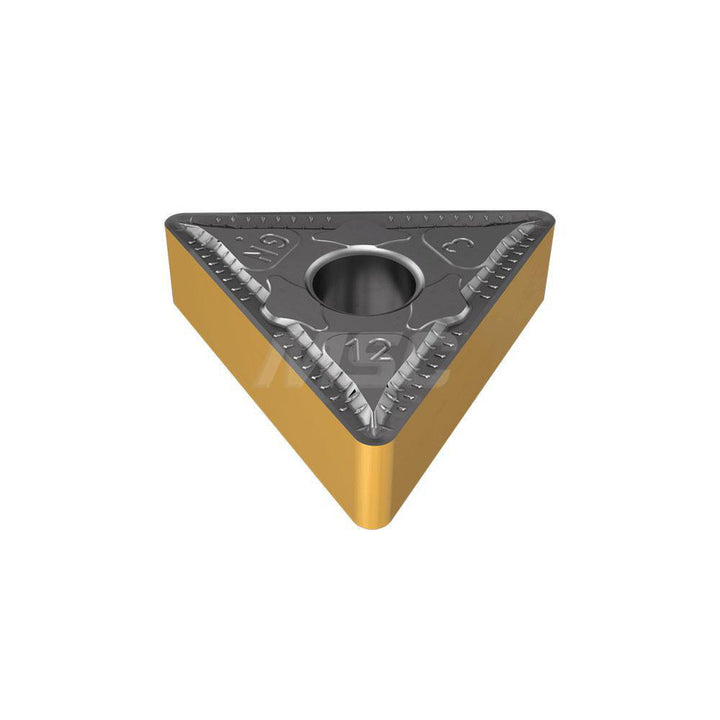

TNMG 543-GN Solid Carbide Insert, Grade IC9350, TiCN - Iscar 5507258
MFR# 5507258ISO/ANSI# TNMG 543-GNCat# TNMG 543-GNSeries Isoturn
$37.85List $47.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeTriangle
GradeIC9350
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507258 is a TNMG 543-GN solid carbide indexable insert, grade IC9350, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Included angle60.0
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length1.0830
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code543
Insert styleTNMG
Insert thickness in1/4
Iso codeTNMG 543-GN
Length range0.7000 - 10.0000
Manufacturers catalog numberTNMG 543-GN
Manufacturer gradeIC9350
Maximum depth of cut0.2360
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
