Iscar
ISO 13399 Carbide Insert, Grade IC9250, TiCN - Iscar 5507279
MFR# 5507279ISO/ANSI# ISO 13399Series Isoturn
$13.57List $17.10
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC9250
MaterialCarbide
CoatingTiCN
Description

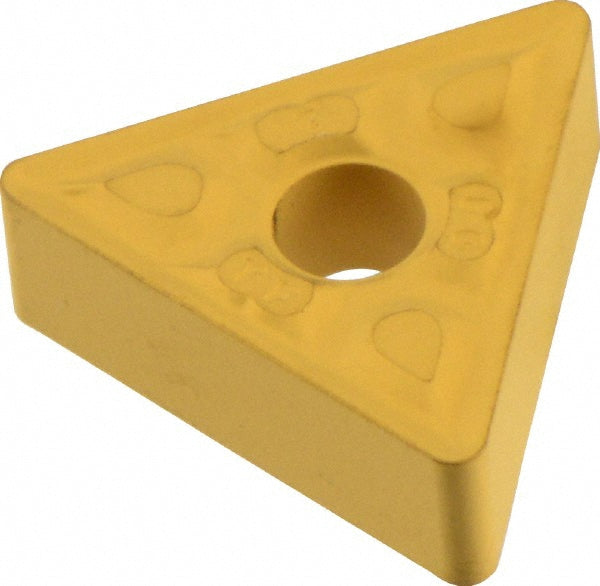

The Iscar 5507279 is a ISO 13399 carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle60
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC9250
Maximum depth of cut0.1181
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
