Iscar

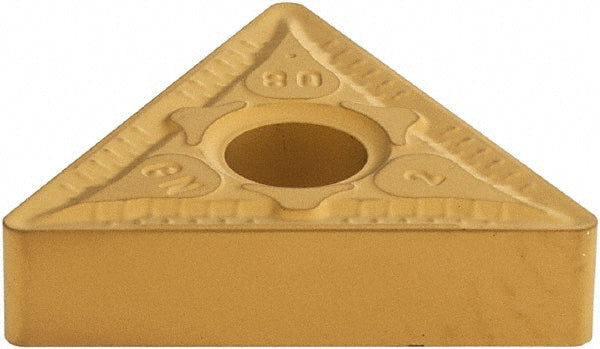

ISO 13399 Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5507280
MFR# 5507280ISO/ANSI# ISO 13399Series Isoturn
$19.26List $24.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507280 is a ISO 13399 solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle60.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.8660
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.7000 - 10.0000
Manufacturer gradeIC9250
Material gradeC5; C6; C7
Maximum depth of cut0.1570
Primary workpiece materialStainless Steel; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
