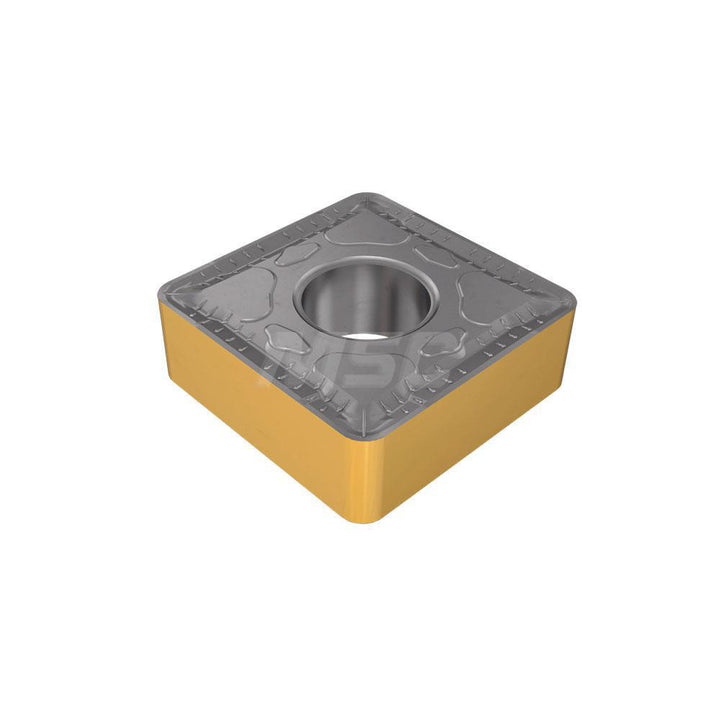

SNMG 432-GN Carbide Insert, Grade IC9250, TiCN - Iscar 5507284

Iscar

SNMG 432-GN Carbide Insert, Grade IC9250, TiCN - Iscar 5507284

MFR# 5507284ISO/ANSI# SNMG120408Cat# SNMG 432-GNSeries Isoturn

$15.67List $20.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeS - Square
GradeIC9250
MaterialCarbide
CoatingTiCN

Description

The Iscar 5507284 is a SNMG 432-GN carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeSNMG432
Ansi size code432
Chip breakerGN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance
Included angle90
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG 432-GN
Iso insert codeSNMG120408
Iso size code120408
Manufacturers catalog numberSNMG 432-GN
Manufacturer gradeIC9250
Maximum depth of cut0.1970
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
Width in1/2
