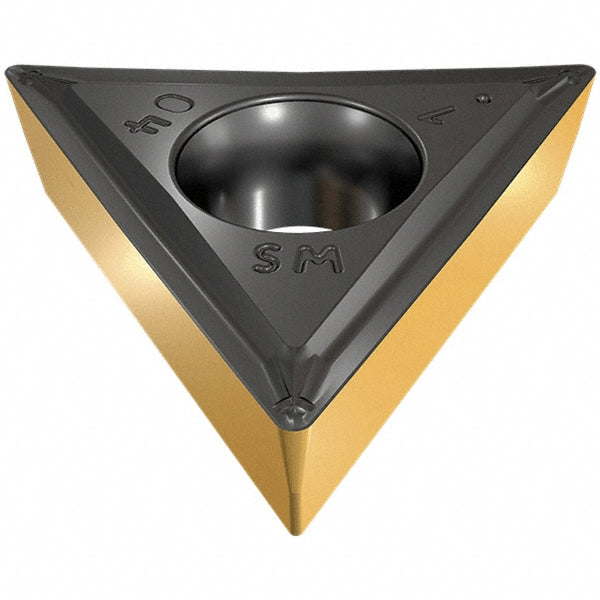

ISO 13399 Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5507286
MFR# 5507286ISO/ANSI# ISO 13399Series Isoturn
$16.29List $20.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507286 is a ISO 13399 solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle60.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code3-1
Insert styleTCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC9250
Maximum depth of cut0.1181
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
