Iscar

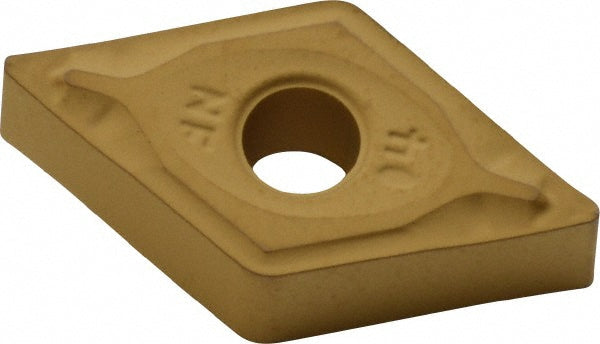

DNMG 331-NF Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5507287
MFR# 5507287ISO/ANSI# DNMG 331-NFCat# DNMG 331-NFSeries Isoturn
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507287 is a DNMG 331-NF solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle55.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.4580
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 331-NF
Length range0.4000 - 0.5000
Manufacturers catalog numberDNMG 331-NF
Manufacturer gradeIC9250
Maximum depth of cut0.1180
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
