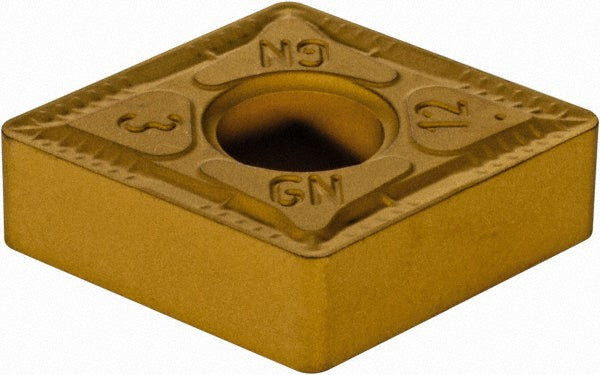

ISO 13399 Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5507312
MFR# 5507312ISO/ANSI# ISO 13399Series Isoturn
$37.03List $47.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507312 is a ISO 13399 solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerGN
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Included angle80.0
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length0.7598
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeISO 13399
Length range0.7000 - 10.0000
Manufacturer gradeIC9250
Maximum depth of cut0.3142
Primary workpiece materialStainless Steel; Steel
Relief angle0
StandardsISO 13399
Tolerance codeM
