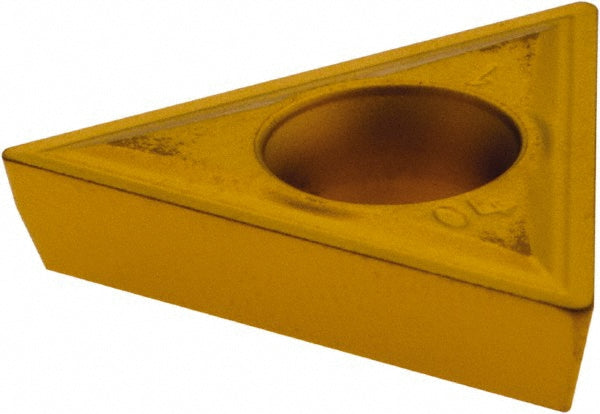

ISO 13399 Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5507317
MFR# 5507317ISO/ANSI# ISO 13399Series Isoturn
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507317 is a ISO 13399 solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerT
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Hole diameter0.1693
Included angle60.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6496
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code321
Insert styleTPMT
Insert thickness in1/8
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC9250
Material gradeC5; C6; C7
Maximum depth of cut0.1570
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle11
StandardsISO 13399
Tolerance codeM
