Iscar

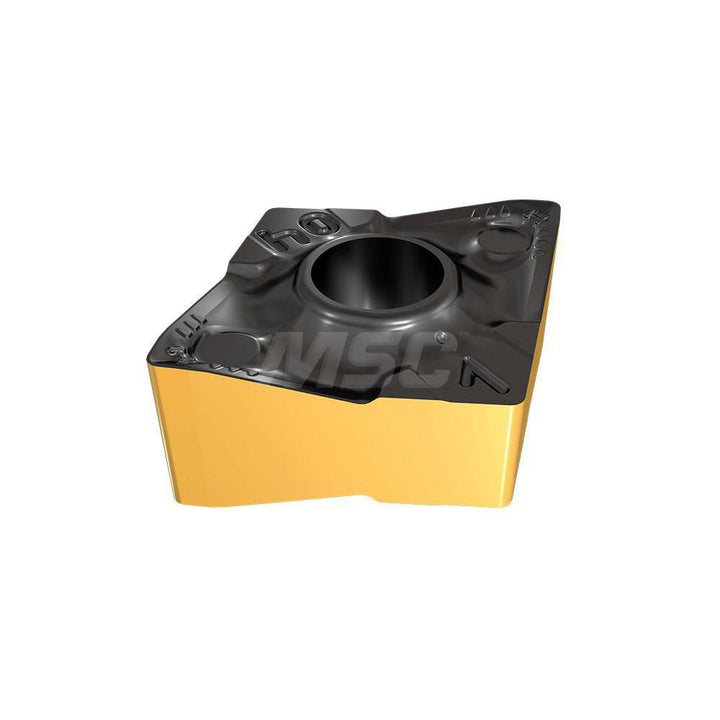

ISO 13399 Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5507339
MFR# 5507339ISO/ANSI# ISO 13399Series Heliturn LD
$19.11List $24.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507339 is a ISO 13399 solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerHTW
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code452
Insert styleCNMX
Insert thickness in5/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIC9250
Material gradeC5; C6; C7
Maximum depth of cut0.2362
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
