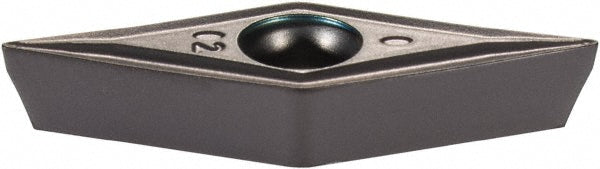

VCMT 220-SM Carbide Insert, Grade IC907, TiN - Iscar 5507351
MFR# 5507351ISO/ANSI# VCMT110301Cat# VCMT 220-SMSeries Isoturn
$24.09List $30.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC907
MaterialCarbide
CoatingTiN
Description
The Iscar 5507351 is a VCMT 220-SM carbide indexable insert, grade IC907, TiN coated. Suited for universal.
Specifications
Ansi insert codeVCMT220
Ansi size code220
Chip breakerSM
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius0.0080
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Mo
Hole diameter0.1140
Included angle35
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4370
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code220
Insert styleVCMT
Insert thickness in1/8
Iso codeVCMT 220-SM
Iso insert codeVCMT110301
Iso size code110301
Length range0.4000 - 0.5000
Manufacturers catalog numberVCMT 220-SM
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.0980
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialUniversal
RakePositive
Relief angle7
Side clearancePositive
StandardsISO 13399
Tolerance codeM
