Iscar

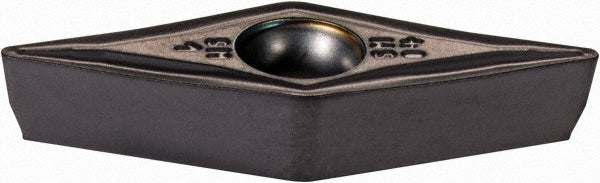

VCMT 221-SM Solid Carbide Insert, Grade IC907, TiN - Iscar 5507352
MFR# 5507352ISO/ANSI# VCMT 221-SMCat# VCMT 221-SMSeries Isoturn
$24.52List $30.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIC907
MaterialSolid Carbide
CoatingTiN
Description
The Iscar 5507352 is a VCMT 221-SM solid carbide indexable insert, grade IC907, TiN coated.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1140
Included angle35.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.4370
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code221
Insert styleVCMT
Insert thickness in1/8
Iso codeVCMT 221-SM
Length range0.4000 - 0.5000
Manufacturers catalog numberVCMT 221-SM
Manufacturer gradeIC907
Material gradeSubmicron
Maximum depth of cut0.1180
Multi use applicationBoring
Multi use toolYes
RakePositive
Relief angle7
StandardsISO 13399
Tolerance codeM
