Iscar

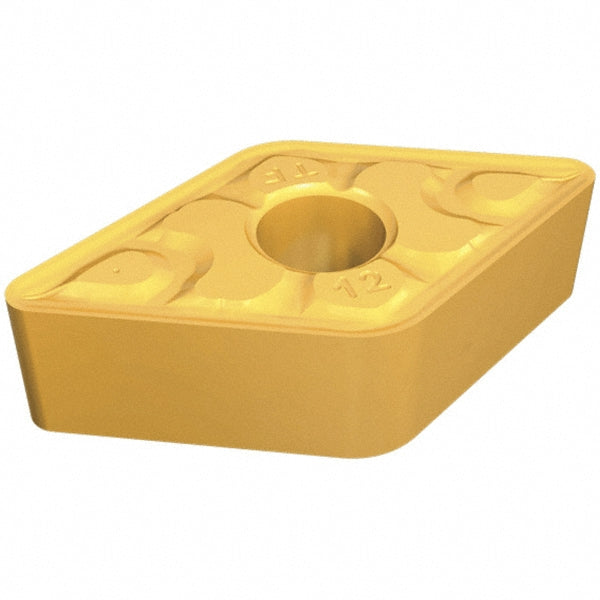

DNMG 432-TF Solid Carbide Insert, Grade IC9150, TiCN - Iscar 5507361
MFR# 5507361ISO/ANSI# DNMG 432-TFCat# DNMG 432-TFSeries Isoturn
$19.11List $24.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC9150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507361 is a DNMG 432-TF solid carbide indexable insert, grade IC9150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6100
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 432-TF
Length range0.6000 - 0.6500
Manufacturers catalog numberDNMG 432-TF
Manufacturer gradeIC9150
Maximum depth of cut0.1380
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
