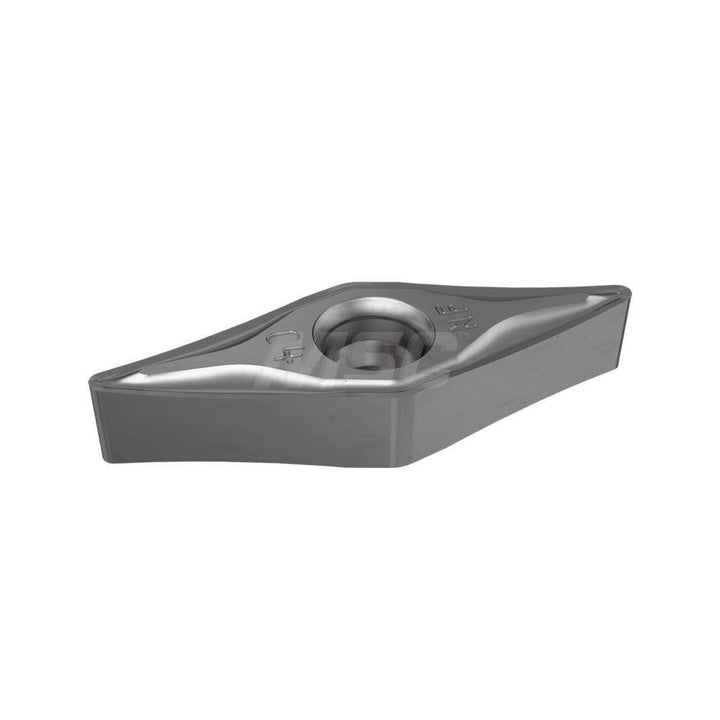

VNMG 331-NF Carbide Insert, Grade IC9150, TiCN - Iscar 5507396
MFR# 5507396ISO/ANSI# VNMG 331-NFCat# VNMG 331-NFSeries Isoturn
$25.81List $33.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC9150
MaterialCarbide
CoatingTiCN
Description
The Iscar 5507396 is a VNMG 331-NF carbide indexable insert, grade IC9150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle35
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG 331-NF
Length range0.6500 - 0.7000
Manufacturers catalog numberVNMG 331-NF
Manufacturer gradeIC9150
Maximum depth of cut0.0980
Multi use applicationBoring
Multi use toolYes
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
