Iscar

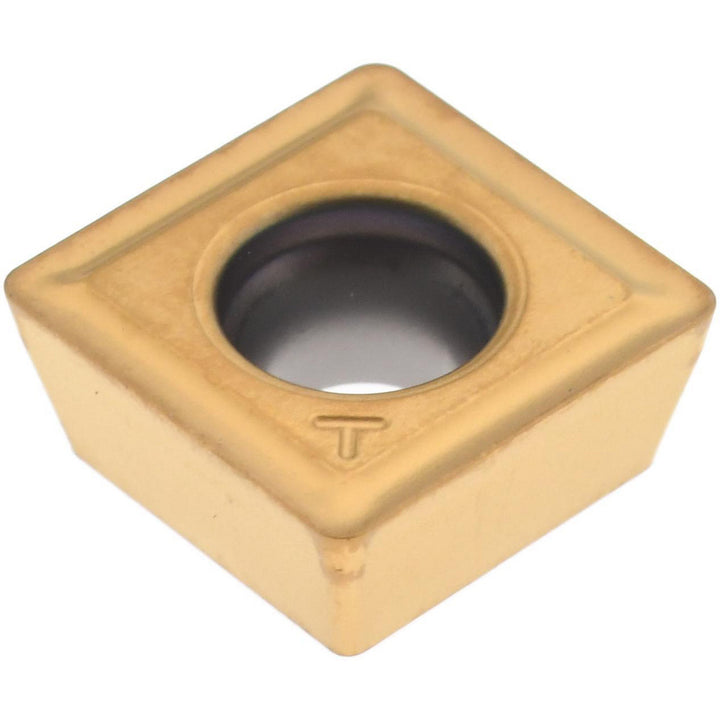

ISO 13399 Solid Carbide Insert, Grade IC1008, Coated - Iscar 5507428
MFR# 5507428ISO/ANSI# ISO 13399Series DR-TWIST
$17.65List $22.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC1008
MaterialSolid Carbide
CoatingCoated
Description
The Iscar 5507428 is a ISO 13399 solid carbide indexable insert, grade IC1008, Coated coated. Suited for universal.
Specifications
ChipbreakerDT
Coating finishCoated
Coating processPVD
Corner radius0.0236
Included angle degree90
Inscribed circle0.3543
Insert materialSolid Carbide
Insert size09T306
Insert size code09
Insert styleSOMT
Iso codeISO 13399
Length0.3540
Manufacturer gradeIC1008
Model numberSOMT 09T306-DT IC1008
Primary workpiece materialUniversal
ShapeSquare
StandardsISO 13399
Thickness0.1500
Width0.3540
