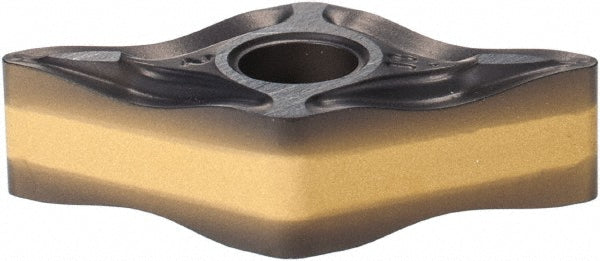

ISO 13399 Solid Carbide Insert, Grade IC8150, TiCN - Iscar 5507504
MFR# 5507504ISO/ANSI# ISO 13399Series Heliturn
$27.75List $35.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC8150
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507504 is a ISO 13399 solid carbide indexable insert, grade IC8150, TiCN coated. Suited for cast iron, steel.
Specifications
Chip breakerHT
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code442
Insert styleDNMX
Insert thickness in1/4
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC8150
Maximum depth of cut0.1970
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
