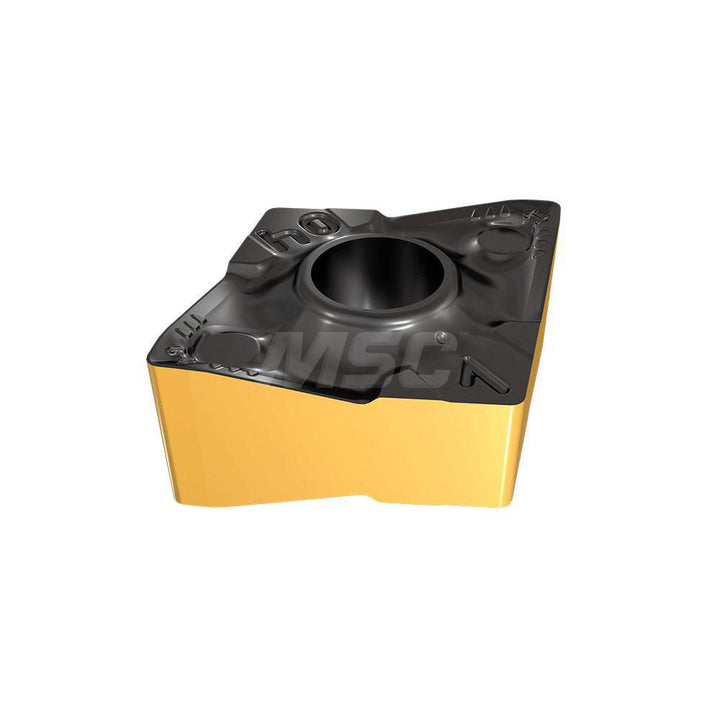

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5507505

Iscar

ISO 13399 Carbide Insert, Grade IC807, TiAlN - Iscar 5507505

MFR# 5507505ISO/ANSI# CNMX160712Series Heliturn LD

$30.17List $38.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC807
MaterialCarbide
CoatingTiAlN

Description

The Iscar 5507505 is a ISO 13399 carbide indexable insert, grade IC807, TiAlN coated. Suited for universal.

Specifications

Ansi insert codeCNMX553
Ansi size code553
Chip breakerHTW
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Supe
Included angle80
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length0.6339
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code553
Insert styleCNMX
Insert thickness in5/16
Iso codeISO 13399
Iso insert codeCNMX160712
Iso size code160712
Length range0.6000 - 0.6500
Manufacturer gradeIC807
Maximum depth of cut0.2362
Primary workpiece materialUniversal
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
