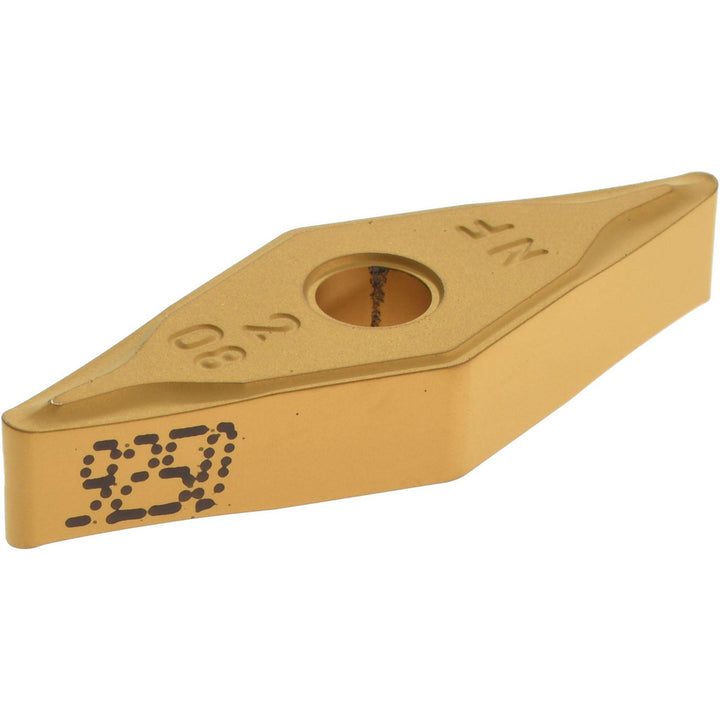

ISO 13399 Carbide Insert, Grade IC9250, TiCN - Iscar 5507540

Iscar

ISO 13399 Carbide Insert, Grade IC9250, TiCN - Iscar 5507540

MFR# 5507540ISO/ANSI# VNMG160408Series Isoturn

$25.81List $33.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeIC9250
MaterialCarbide
CoatingTiCN

Description

The Iscar 5507540 is a ISO 13399 carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.

Specifications

Ansi insert codeVNMG332
Ansi size code332
Chip breakerNF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeVNMG160408
Iso size code160408
Length range0.6500 - 0.7000
Manufacturer gradeIC9250
Material gradeC5; C6; C7
Maximum depth of cut0.1181
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
