Iscar

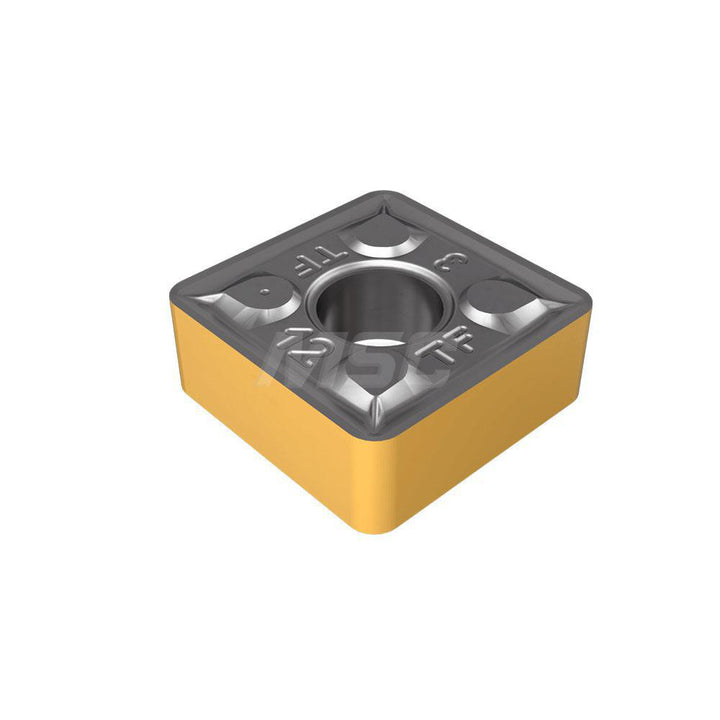

ISO 13399 Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5507557
MFR# 5507557ISO/ANSI# ISO 13399Series Isoturn
$8.89List $11.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeSquare
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507557 is a ISO 13399 solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Included angle90.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeSquare
Insert size code322
Insert styleSNMG
Insert thickness in1/8
Iso codeISO 13399
Manufacturer gradeIC9250
Maximum depth of cut0.1181
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
Width in3/8
