Iscar

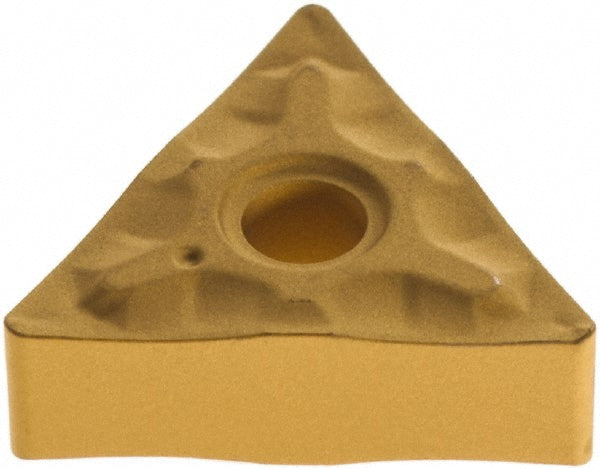

ISO 13399 Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5507565
MFR# 5507565ISO/ANSI# ISO 13399Series Isoturn
$8.11List $10.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507565 is a ISO 13399 solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerNF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle60.0
Inscribed circle in1/4
Insert holding methodClamp; Pin
Insert length0.4330
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code221
Insert styleTNMG
Insert thickness in1/8
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC9250
Maximum depth of cut0.0787
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
