Iscar

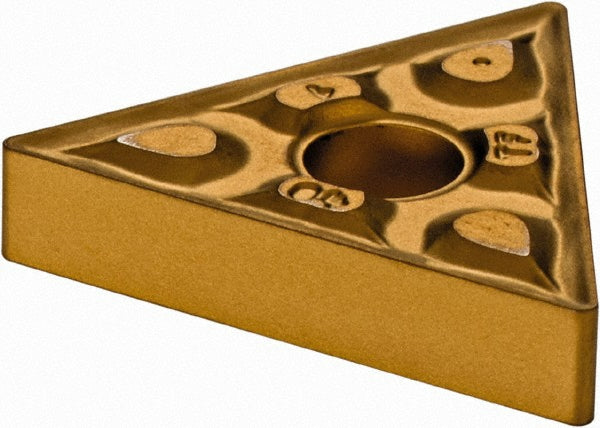

TNMG 321-TF Carbide Insert, Grade IC9250, TiCN - Iscar 5507566
MFR# 5507566ISO/ANSI# TNMG 321-TFCat# TNMG 321-TFSeries Isoturn
$9.90List $12.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC9250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5507566 is a TNMG 321-TF carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerTF
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle60
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6500
Insert materialCarbide
Insert shapeTriangle
Insert size code321
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG 321-TF
Length range0.6500 - 0.7000
Manufacturers catalog numberTNMG 321-TF
Manufacturer gradeIC9250
Maximum depth of cut0.1180
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Tolerance codeM
