Iscar

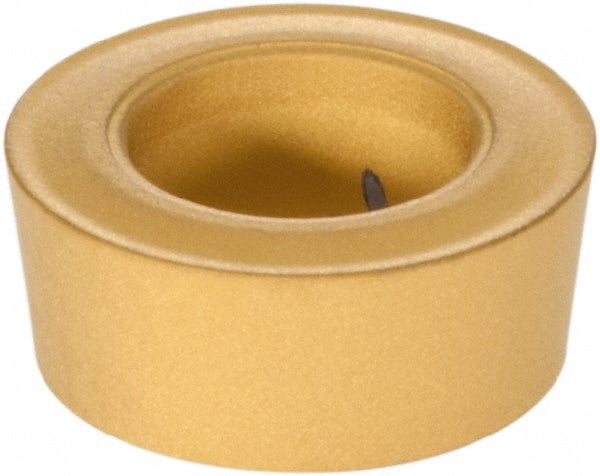

RCMT 0803M0-14 Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5507579
MFR# 5507579ISO/ANSI# RCMT 0803M0-14Cat# RCMT 0803M0-14Series Isoturn
$14.20List $17.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507579 is a RCMT 0803M0-14 solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breaker14
Clearance codeC
Coating finishTiCN
Coating processCVD
Hole diameter0.1340
Inscribed circle0.3150
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size code0803M0
Insert styleRCMT
Insert thickness in1/8
Iso codeRCMT 0803M0-14
Manufacturers catalog numberRCMT 0803M0-14
Manufacturer gradeIC9250
Maximum depth of cut0.1570
Multi use applicationFacing
Multi use toolYes
Primary workpiece materialStainless Steel; Steel
Relief angle7
StandardsISO 13399
Tolerance codeM
