Iscar

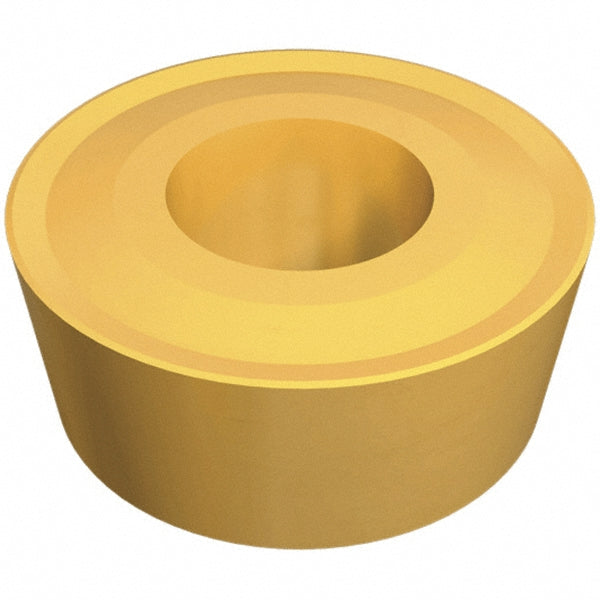

ISO 13399 Carbide Insert, Grade IC9250, TiCN - Iscar 5507581
MFR# 5507581ISO/ANSI# ISO 13399Series RCMT
$17.15List $22.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIC9250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5507581 is a ISO 13399 carbide indexable insert, grade IC9250, TiCN coated. Suited for steel, stainless steel.
Specifications
ApplicationsProfiling; Turning
ChipbreakerNone
Coating finishTiCN
Coating processCVD
Corner radius0.2362
Hole diameter0.2165
Included angle360
Inscribed circle0.4728
Insert handNeutral
Insert height0.1875
Insert holding methodClamp; Pin
Insert length0.4728
Insert materialCarbide
Insert size code1204
Insert styleRCMT
Iso codeISO 13399
Manufacturer gradeIC9250
Material gradeP10; P20; P30; M10; M20
Maximum depth of cut0.2364
Msc manufacturer numberRCMT 1204M0-14
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
ShapeRound
Side length0.4728
StandardsRCMT 1204M0-14
Thickness in3/16
Width0.4728
