Iscar

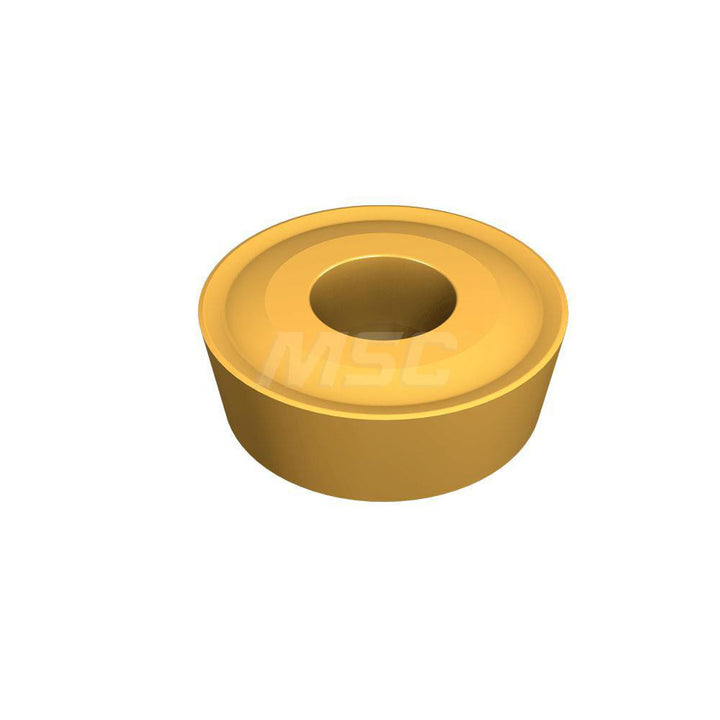

ISO 13399 Solid Carbide Insert, Grade IC9250, TiCN - Iscar 5507585
MFR# 5507585ISO/ANSI# ISO 13399Series Isoturn
$41.95List $53.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeIC9250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507585 is a ISO 13399 solid carbide indexable insert, grade IC9250, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerX
Clearance codeC
Coating finishTiCN
Coating processCVD
Hole diameter0.2560
Inscribed circle0.7874
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size code200600
Insert styleRCMX
Insert thickness in1/4
Iso codeISO 13399
Manufacturer gradeIC9250
Maximum depth of cut0.3937
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle7
StandardsISO 13399
Stocking categoryD
Tolerance codeM
