Iscar

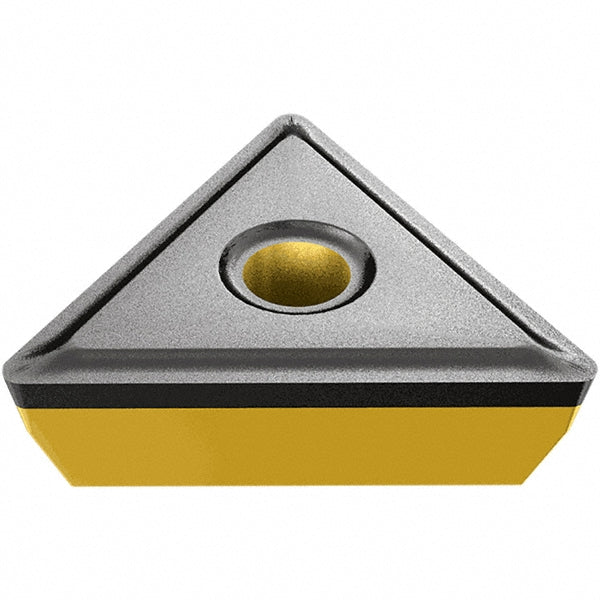

ISO 13399 Solid Carbide Insert, Grade IC9250, TiCN/Al2O3/TiN - Iscar 5507594
MFR# 5507594ISO/ANSI# ISO 13399Series Isoturn
$11.38List $14.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeTriangle
GradeIC9250
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Iscar 5507594 is a ISO 13399 solid carbide indexable insert, grade IC9250, TiCN/Al2O3/TiN coated. Suited for stainless steel, steel.
Specifications
Chip breakerR
Clearance codeP
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius in1/64
Included angle60.0
Inscribed circle in7/32
Insert holding methodClamp
Insert length0.3780
Insert materialSolid Carbide
Insert shapeTriangle
Insert size code731
Insert styleTPMR
Insert thickness in3/32
Iso codeISO 13399
Length range0.3000 - 0.4000
Manufacturer gradeIC9250
Maximum depth of cut0.1378
Primary workpiece materialStainless Steel; Steel
Relief angle11
StandardsISO 13399
Tolerance codeM
