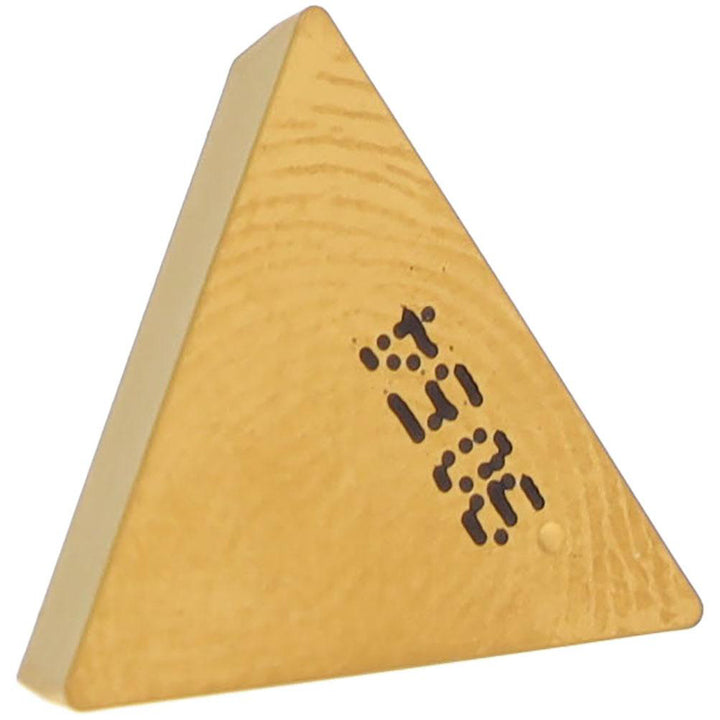

TPUN 160304 Solid Carbide Insert, Grade IC9054, TiCN - Iscar 5507596

Iscar

TPUN 160304 Solid Carbide Insert, Grade IC9054, TiCN - Iscar 5507596

MFR# 5507596ISO/ANSI# TPUN 160304Cat# TPU 321 IC9054Series ISCARMILL

$12.63List $16.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIC9054
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5507596 is a TPUN 160304 solid carbide indexable insert, grade IC9054, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeTPU 321 IC9054
Chip breakerFlat Top
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge effective length0.6142
Cutting edge styleHoned
Included angle degree60
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeTriangle
Insert size3
Insert size code321
Insert styleTPU
Iso codeTPUN 160304
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberTPU 321 IC9054
Manufacturer gradeIC9054
Material applicationSteel; Stainless Steel
Maximum depth of cut0.6142
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in1/8
Thickness range0.1250 to 0.1500
Width0.6299
