Iscar

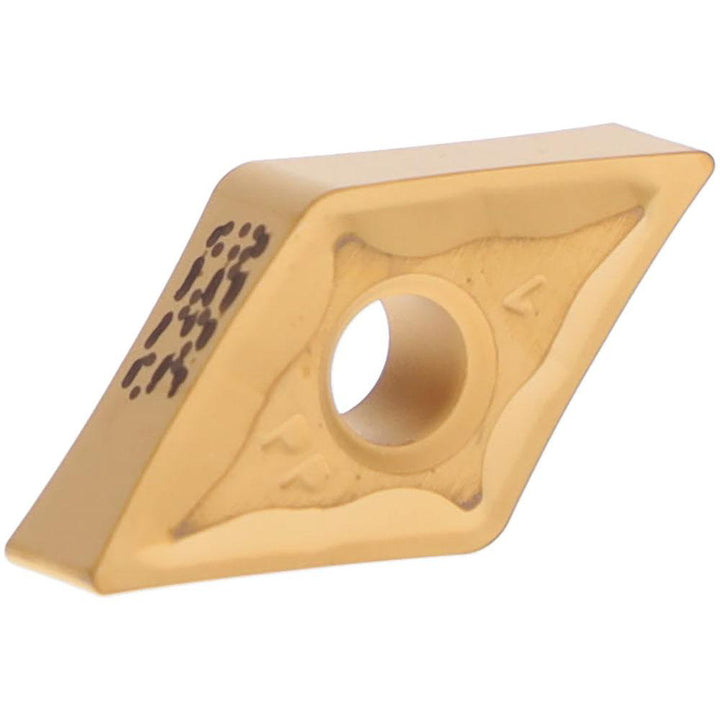

ISO 13399 Solid Carbide Insert, Grade IC9350, TiCN - Iscar 5507620
MFR# 5507620ISO/ANSI# ISO 13399Series Isoturn
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC9350
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507620 is a ISO 13399 solid carbide indexable insert, grade IC9350, TiCN coated. Suited for stainless steel, steel.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Included angle55.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.4580
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code331
Insert styleDNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC9350
Maximum depth of cut0.1180
Primary workpiece materialStainless Steel; Steel
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
