Iscar

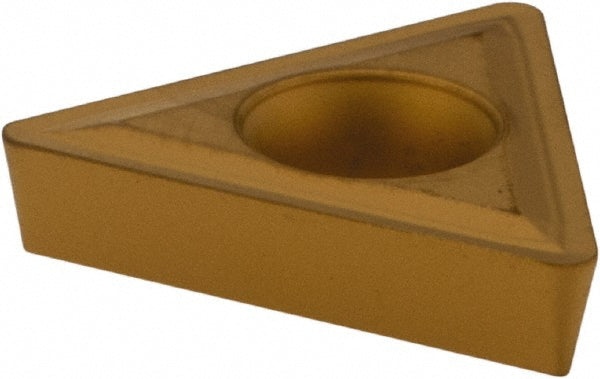

ISO 13399 Carbide Insert, Grade IC9150, TiCN - Iscar 5507648
MFR# 5507648ISO/ANSI# TPMT160308Series Isoturn
$19.49List $25.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeIC9150
MaterialCarbide
CoatingTiCN
Description
The Iscar 5507648 is a ISO 13399 carbide indexable insert, grade IC9150, TiCN coated.
Specifications
Ansi insert codeTPMT322
Ansi size code322
Chip breakerT
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1693
Included angle60
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code322
Insert styleTPMT
Insert thickness in1/8
Iso codeISO 13399
Iso insert codeTPMT160308
Iso size code160308
Length range0.6000 - 0.6500
Manufacturer gradeIC9150
Maximum depth of cut0.4724
RakePositive
Relief angle11
Side clearancePositive
StandardsISO 13399
Stocking categoryD
Tolerance codeM
