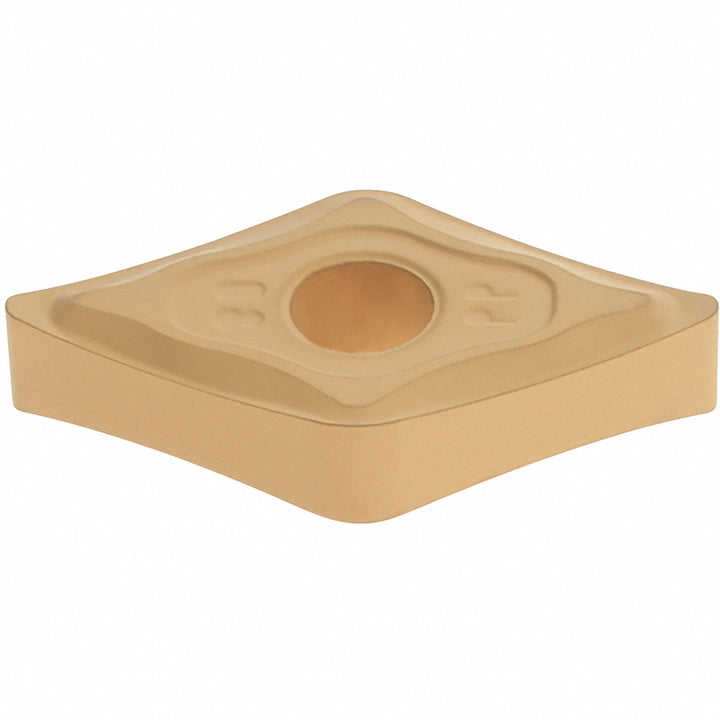

ISO 13399 Solid Carbide Insert, Grade IC9150, TiCN/Al2O3/TiN - Iscar 5507652
MFR# 5507652ISO/ANSI# ISO 13399Series Isoturn
$22.29List $28.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC9150
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Iscar 5507652 is a ISO 13399 solid carbide indexable insert, grade IC9150, TiCN/Al2O3/TiN coated. Suited for cast iron, steel.
Specifications
Chip breakerPP
Clearance codeN
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius in1/32
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC9150
Maximum depth of cut0.1570
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
StandardsISO 13399
Stocking categoryD
Tolerance codeM
