Iscar
ISO 13399 Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5507669
MFR# 5507669ISO/ANSI# ISO 13399Series Isoturn
$17.93List $23.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description

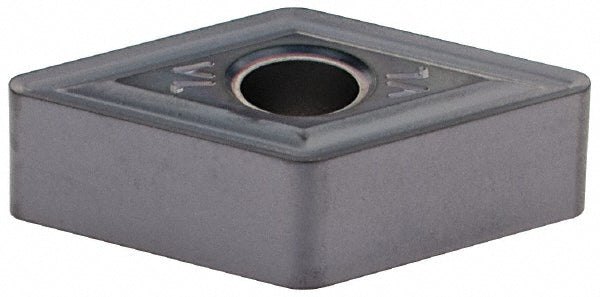

The Iscar 5507669 is a ISO 13399 solid carbide indexable insert, grade IC908, TiAlN coated. Suited for k, m, p.
Specifications
Chip breakerVL
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1500
Included angle55.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.4580
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeIC908
Maximum depth of cut0.1378
Primary workpiece materialK; M; P
Relief angle0
Secondary workpiece materialHard Material; S
StandardsISO 13399
Stocking categoryD
Tolerance codeM
