Iscar

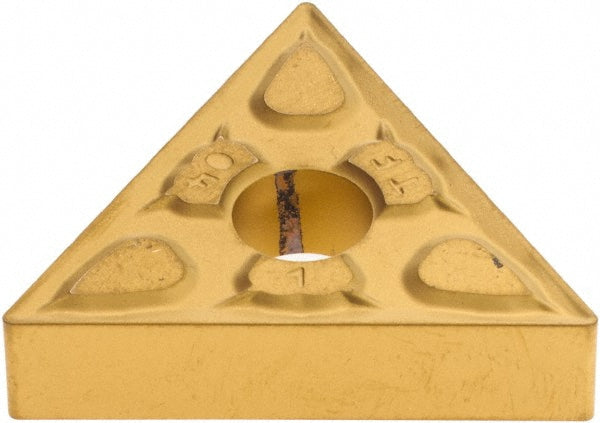

ISO 13399 Carbide Insert, Grade IC9150, TiCN - Iscar 5507678
MFR# 5507678ISO/ANSI# TNMG220404Series Isoturn
$19.26List $24.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeIC9150
MaterialCarbide
CoatingTiCN
Description
The Iscar 5507678 is a ISO 13399 carbide indexable insert, grade IC9150, TiCN coated. Suited for cast iron, steel.
Specifications
Ansi insert codeTNMG431
Ansi size code431
Chip breakerTF
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance
Hole diameter0.2030
Included angle60
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code431
Insert styleTNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeTNMG220404
Iso size code220404
Length range0.7000 - 10.0000
Manufacturer gradeIC9150
Material gradeC3; C4; C6; C7; C8
Maximum depth of cut0.1378
Primary workpiece materialCast Iron; Steel
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
