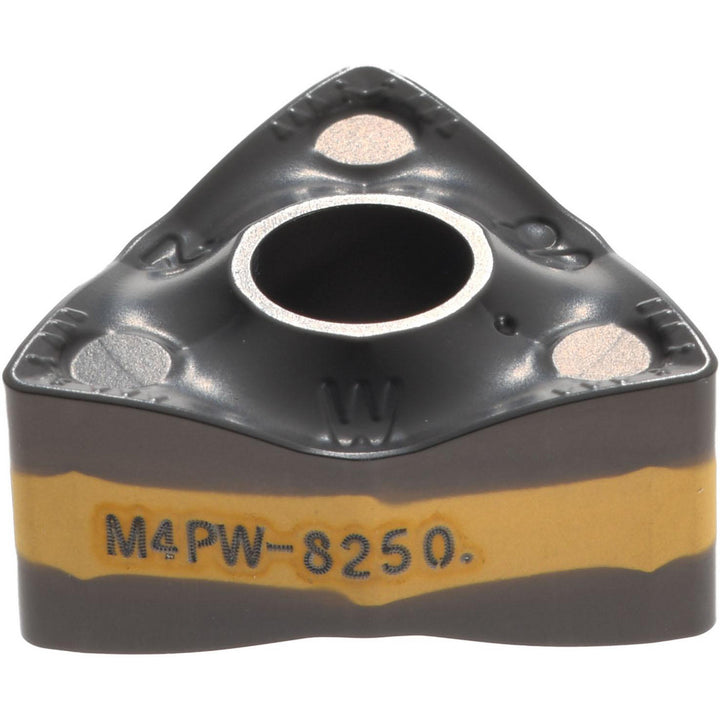

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 5507685

MFR# 5507685ISO/ANSI# WNMX080708Series Heliturn LD

$22.07List $28.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeIC8250
MaterialCarbide
CoatingTiCN

Description

The Iscar 5507685 is a ISO 13399 carbide indexable insert, grade IC8250, TiCN coated.

Specifications

Ansi insert codeWNMX452
Ansi size code452
Chip breakerHTW
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code452
Insert styleWNMX
Insert thickness0.2669
Iso codeISO 13399
Iso insert codeWNMX080708
Iso size code080708
Length range0.3000 - 0.4000
Manufacturer gradeIC8250
Maximum depth of cut0.4130
RakePositive
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
Wiper edgeYes
