Iscar

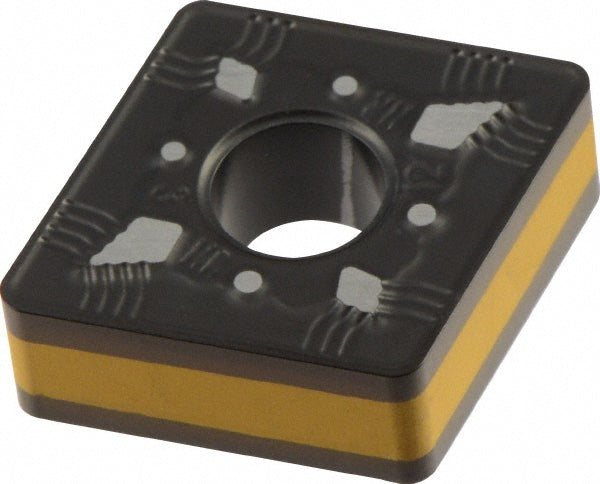

ISO 13399 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5507693
MFR# 5507693ISO/ANSI# ISO 13399Series Isoturn
$30.72List $39.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507693 is a ISO 13399 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for p.
Specifications
Chip breakerNR
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in3/64
Hole diameter0.2500
Included angle80.0
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length0.6260
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIC8250
Maximum depth of cut0.2756
Primary workpiece materialP
Relief angle0
Secondary workpiece materialM
StandardsISO 13399
Stocking categoryD
Tolerance codeM
