Iscar

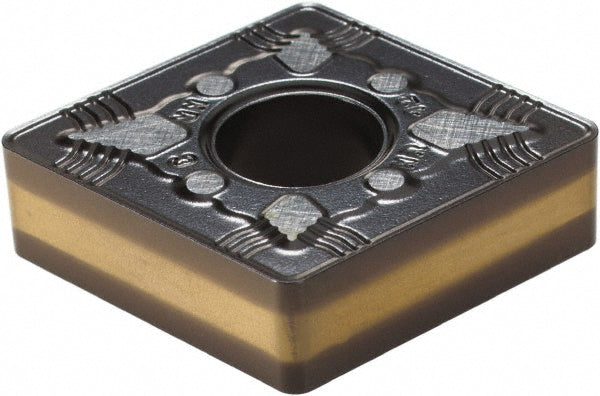

ISO 13399 Carbide Insert, Grade IC8250, TiCN - Iscar 5507696
MFR# 5507696ISO/ANSI# CNMG190612Series Isoturn
$40.31List $51.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeIC8250
MaterialCarbide
CoatingTiCN
Description
The Iscar 5507696 is a ISO 13399 carbide indexable insert, grade IC8250, TiCN coated. Suited for stainless steel, steel.
Specifications
Ansi insert codeCNMG643
Ansi size code643
Chip breakerNR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Grade characteristicsSteel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length0.7598
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeISO 13399
Iso insert codeCNMG190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturer gradeIC8250
Maximum depth of cut0.3150
Primary workpiece materialStainless Steel; Steel
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
