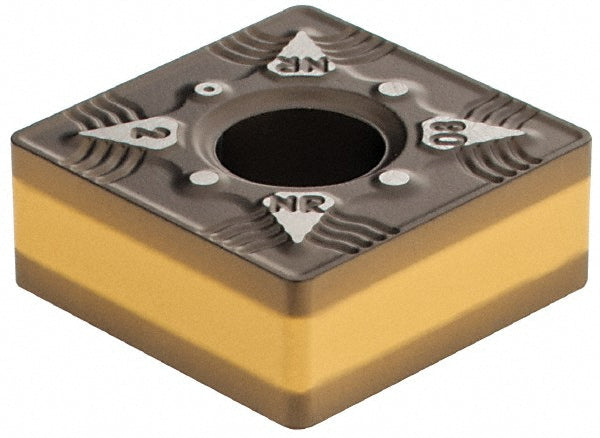

SNMG542 Solid Carbide Insert, Grade IC8250, TiCN - Iscar 5507703
MFR# 5507703ISO/ANSI# SNMG542Series Isoturn
$26.43List $33.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeSquare
GradeIC8250
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507703 is a SNMG542 solid carbide indexable insert, grade IC8250, TiCN coated. Suited for p.
Specifications
Chip breakerNR
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Hole diameter0.2500
Included angle90.0
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeSquare
Insert size code542
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG542
Manufacturer gradeIC8250
Maximum depth of cut0.3150
Primary workpiece materialP
Relief angle0
Secondary workpiece materialM
StandardsISO 13399
Stocking categoryD
Tolerance codeM
Width0.5250
