Iscar

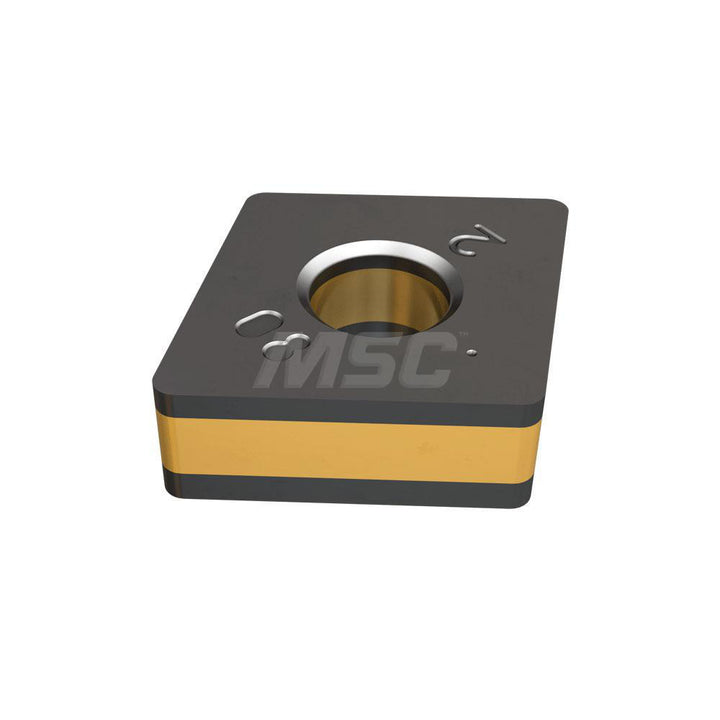

CNMA120408 Solid Carbide Insert, Grade IC5005, TiCN - Iscar 5507726
MFR# 5507726ISO/ANSI# CNMA120408Series Isoturn
$16.22List $20.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIC5005
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5507726 is a CNMA120408 solid carbide indexable insert, grade IC5005, TiCN coated. Suited for k.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA120408
Manufacturer gradeIC5005
Maximum depth of cut0.1570
Primary workpiece materialK
Relief angle0
StandardsISO 13399
Tolerance codeM
